PLA015 5052-H32 Aluminum Serrated 18-3/4" Wide Plank Grating industrial grating product detail
Load Rating2.22 Lbs./Linear Foot
DurabilityAluminum (AL) / Alloy 5052-H32 (5052H32) / Mill Finish

Smart Product Match

PLA058 5052-H32 Aluminum Serrated 18-3/4" Wide Plank Grating
PLA058

PLA058 5052-H32 Aluminum Serrated 18-3/4" Wide Plank Grating

Matched on PLA058 5052-H32 Aluminum Serrated 18-3/4" Wide Plank Grating / PLA058 5052-H32 Aluminum Serrated 18-3/4" Wide Plank Grating. Plank grating product for industrial walkways, platforms, ladder rungs and stair access applications. Material: Aluminum (AL) / Alloy 5052-H32 (5052H32) / Mill Finish. Surface: Serrated. Size: 18-3/4" x 144" (Cut Lengths Available). Weight: 2.80 Lbs./Linear Foot. specifications.

PLA003 5052-H32 Aluminum Serrated 9-1/2" Wide Plank Grating
PLA003

PLA003 5052-H32 Aluminum Serrated 9-1/2" Wide Plank Grating

Matched on PLA003 5052-H32 Aluminum Serrated 9-1/2" Wide Plank Grating / PLA003 5052-H32 Aluminum Serrated 9-1/2" Wide Plank Grating. Plank grating product for industrial walkways, platforms, ladder rungs and stair access applications. Material: Aluminum (AL) / Alloy 5052-H32 (5052H32) / Mill Finish. Surface: Serrated. Size: 9-1/2" x 144" (Cut Lengths Available). Weight: 1.74 Lbs./Linear Foot. specifications.

PLA004 5052-H32 Aluminum Serrated 7" Wide Plank Grating
PLA004

PLA004 5052-H32 Aluminum Serrated 7" Wide Plank Grating

Matched on PLA004 5052-H32 Aluminum Serrated 7" Wide Plank Grating / PLA004 5052-H32 Aluminum Serrated 7" Wide Plank Grating. Plank grating product for industrial walkways, platforms, ladder rungs and stair access applications. Material: Aluminum (AL) / Alloy 5052-H32 (5052H32) / Mill Finish. Surface: Serrated. Size: 7" x 144" (Cut Lengths Available). Weight: 1.50 Lbs./Linear Foot. specifications.

PLA005 5052-H32 Aluminum Serrated 11-3/4" Wide Plank Grating
PLA005

PLA005 5052-H32 Aluminum Serrated 11-3/4" Wide Plank Grating

Matched on PLA005 5052-H32 Aluminum Serrated 11-3/4" Wide Plank Grating / PLA005 5052-H32 Aluminum Serrated 11-3/4" Wide Plank Grating. Plank grating product for industrial walkways, platforms, ladder rungs and stair access applications. Material: Aluminum (AL) / Alloy 5052-H32 (5052H32) / Mill Finish. Surface: Serrated. Size: 11-3/4" x 144" (Cut Lengths Available). Weight: 2.00 Lbs./Linear Foot. specifications.

PLA012 5052-H32 Aluminum Serrated 9-1/2" Wide Plank Grating
PLA012

PLA012 5052-H32 Aluminum Serrated 9-1/2" Wide Plank Grating

Matched on PLA012 5052-H32 Aluminum Serrated 9-1/2" Wide Plank Grating / PLA012 5052-H32 Aluminum Serrated 9-1/2" Wide Plank Grating. Plank grating product for industrial walkways, platforms, ladder rungs and stair access applications. Material: Aluminum (AL) / Alloy 5052-H32 (5052H32) / Mill Finish. Surface: Serrated. Size: 9-1/2" x 23-5/8"; 9-1/2" x 36"; 9-1/2" x 47-13/16"; 9-1/2" x 59-5/8"; 9-1/2" x 72"; 9-1/2" x 120"; 9-1/2" x 144" (Cut Lengths Available). Weight: 1.40 Lbs./Linear Foot. specifications.

Plank Grating / Plank

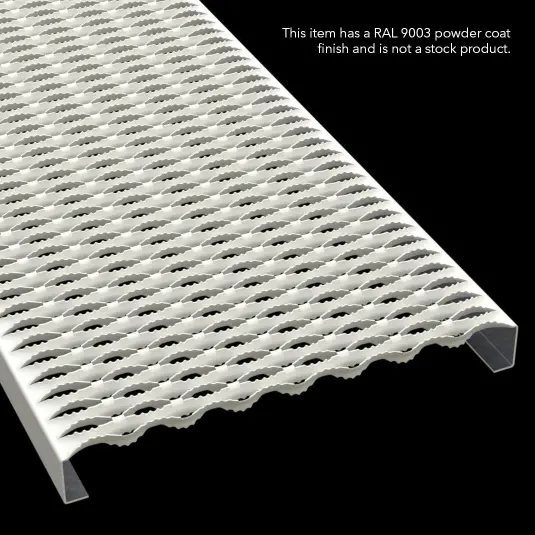

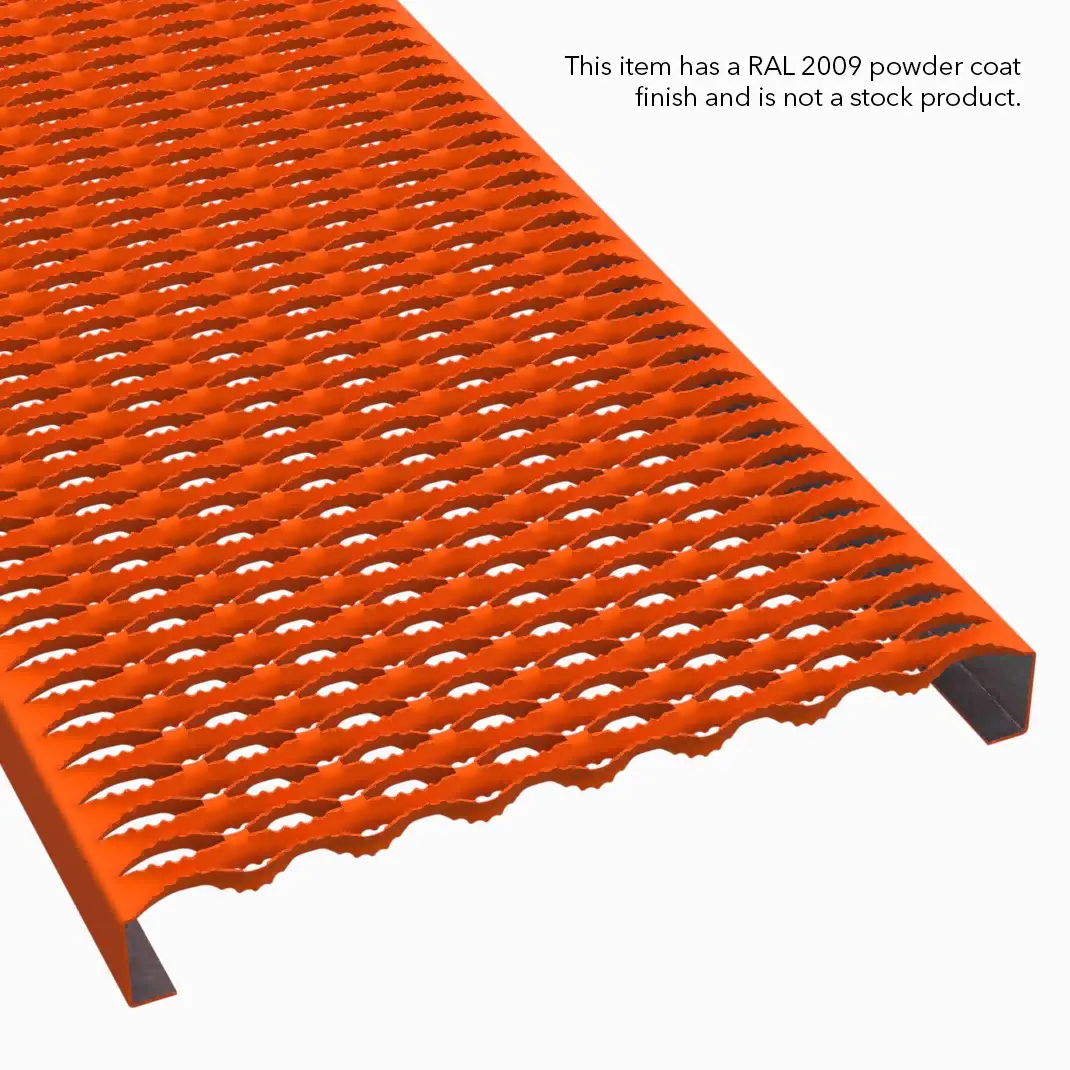

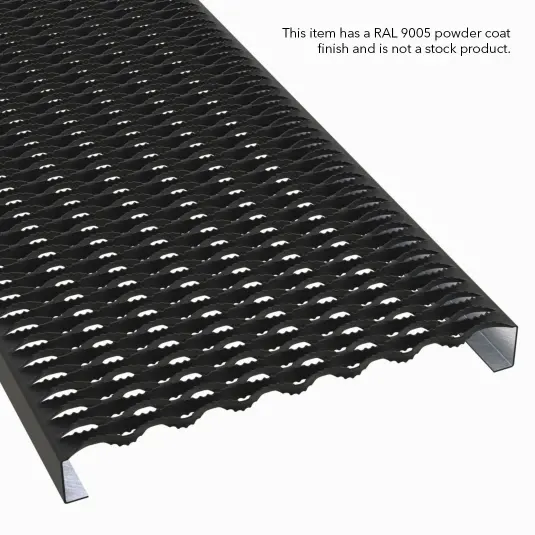

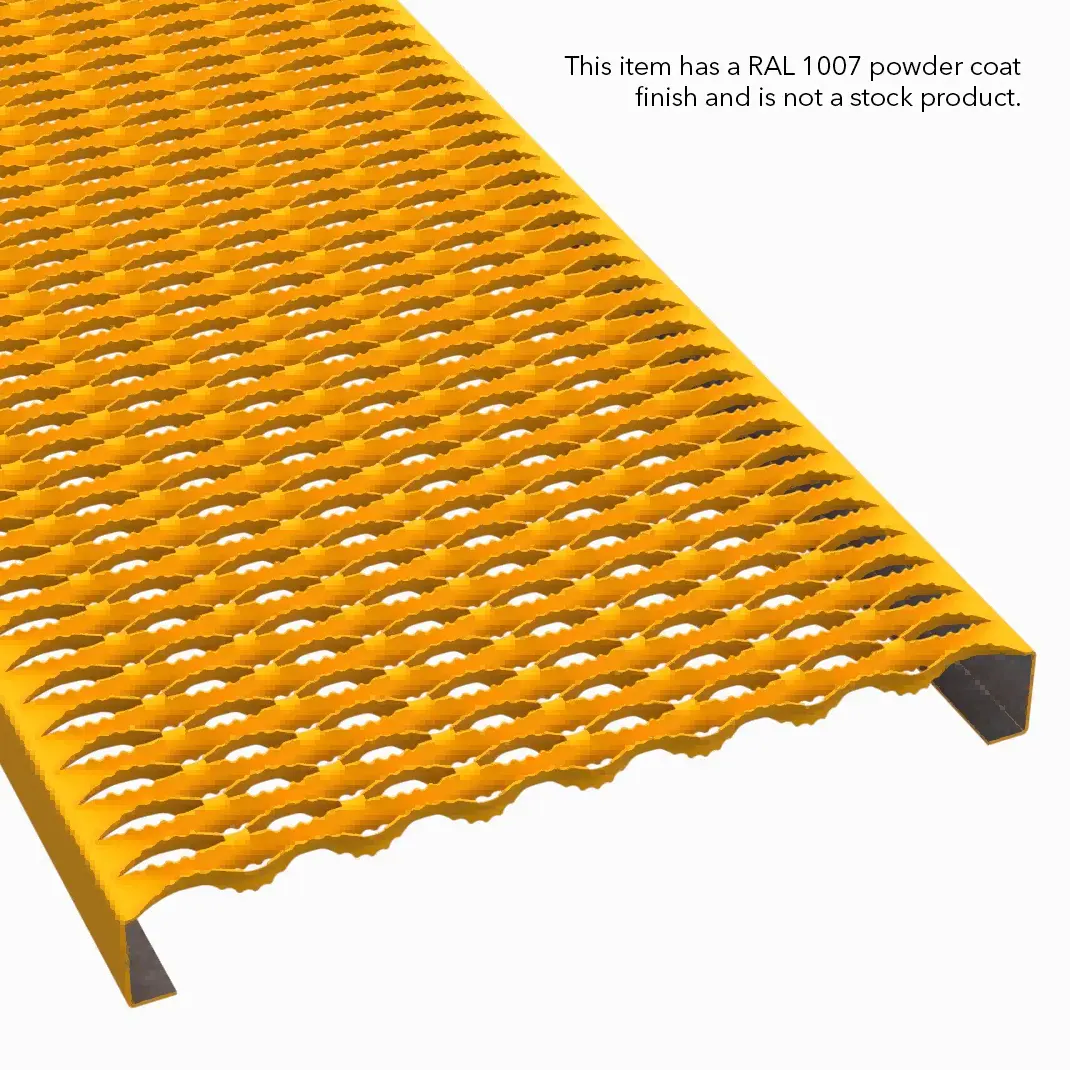

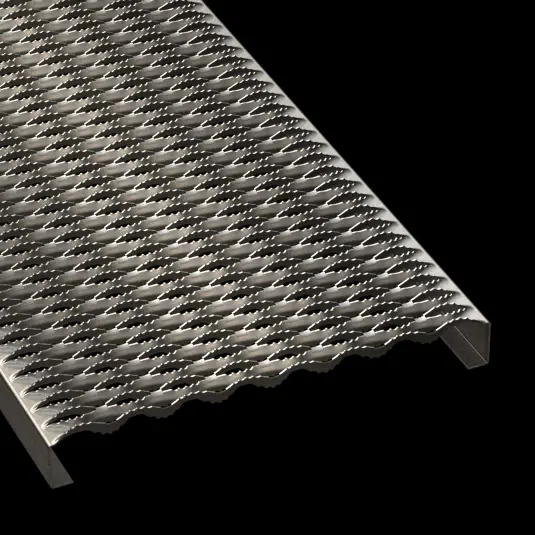

PLA015 5052-H32 Aluminum Serrated 18-3/4" Wide Plank Grating

PLA015 5052-H32 Aluminum Serrated 18-3/4" Wide Plank Grating. Plank grating product for industrial walkways, platforms, ladder rungs and stair access applications. Material: Aluminum (AL) / Alloy 5052-H32 (5052H32) / Mill Finish. Surface: Serrated. Size: 18-3/4" x 144" (Cut Lengths Available). Weight: 2.22 Lbs./Linear Foot.

Request Sample

Technical Data

Item Number270820-A12
Construction TypePlank
Primary MaterialAluminum (AL)
Alloy, Grade or TypeAlloy 5052-H32 (5052H32)
Material FinishMill Finish
Gauge/Thickness.0800" Thick (12 Gauge)
Surface Width18-3/4"
Channel Depth2"
Long Way of Opening (LWO) Parallel toWidth of Plank
Product SurfaceSerrated
Percent Open Area48%
Weight2.22 Lbs./Linear Foot
Product FormPlank
Sizes (Width x Length)18-3/4" x 144" (Cut Lengths Available)
KINGCATS INDUSTRIAL GRATING
Engineering Fit

Specification-Based Fit

Review the matched specifications, application fit and procurement paths before sending drawings or RFQ details.

Key Specifications

PLA015
Primary Material
Aluminum (AL)
Material Finish
Mill Finish
Product Surface
Serrated
Construction Type
Plank
Sizes (Width x Length)
18-3/4" x 144" (Cut Lengths Available)
Percent Open Area
48%

Application Match

Slip-risk access routes
Product Surface: Serrated
Indoor or secondary finishing work
Material Finish: Mill Finish
Drainage and open-area planning
Percent Open Area: 48%
Cut-size procurement
Sizes (Width x Length): 18-3/4" x 144" (Cut Lengths Available)

Engineering Checks

Panel sizing
18-3/4" x 144" (Cut Lengths Available)
Finish verification
Mill Finish

Related Procurement Path

Compatible grating accessoriesClips, clamps and installation hardwareLoad tables and CAD resourcesSubmittal and drawing support
Industry Applications

Matched Application Scenarios

Connect this product to common grating project environments based on material, surface, load and installation requirements.

Offshore Platform steel grating application
Recommended

Offshore & Marine

Specialized grating systems engineered for high corrosion resistance, maximum slip prevention, and structural integrity in the world's most demanding maritime environments.

View Application
Industrial Platform steel grating application
Recommended

Platforms & Walkways

The structural foundation for safe and efficient industrial operations. Versatile grating systems for every level of your facility.

View Application
Infrastructure Project steel grating application
Recommended

Infrastructure Projects

Reliable grating solutions for the backbone of modern society. From transportation hubs to urban drainage, we build for the long term.

View Application
Oil & Gas Facility steel grating application
Recommended

Oil & Gas Facilities

Safety-critical grating solutions engineered for refineries, drilling platforms, and processing plants where durability and slip resistance are paramount.

View Application
Product Performance

Performance Features

Review the key grating features that support load capacity, corrosion resistance, slip resistance and long-term installation reliability.

Material & Finish

Aluminum (AL) / Alloy 5052-H32 (5052H32) / Mill Finish

Surface & Opening

Serrated; Width of Plank

Size & Weight

18-3/4" x 144" (Cut Lengths Available); 2.22 Lbs./Linear Foot; Plank

Installation Details

Cut lengths available for project installation.
